SYM Fiddle II 50cc Scooter Service Manual PDF | 2005-2009

Name: SYM Fiddle II 50cc Scooter Service Manual PDF | 2005-2009
Brand: SYM
SKU: SYM_2005FIDDLEII
Price: 14.99 USD
Availability: InStock

SYM Fiddle II 50cc Scooter Service Manual PDF | 2005-2009

$14.99 USD

Sale Sold out

Instant Download — English Manual - Link sent via email

SYM 2005-2009

SYM Fiddle II 50cc • Service Manual

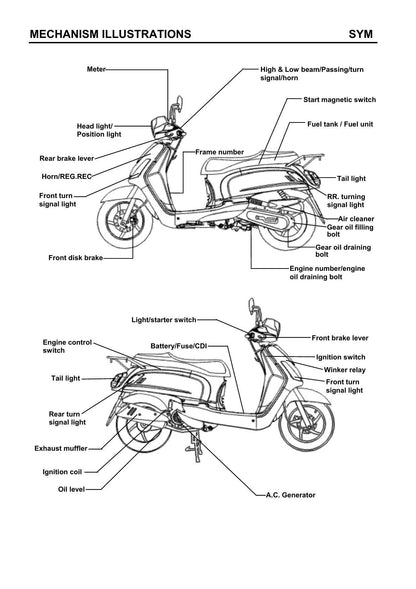

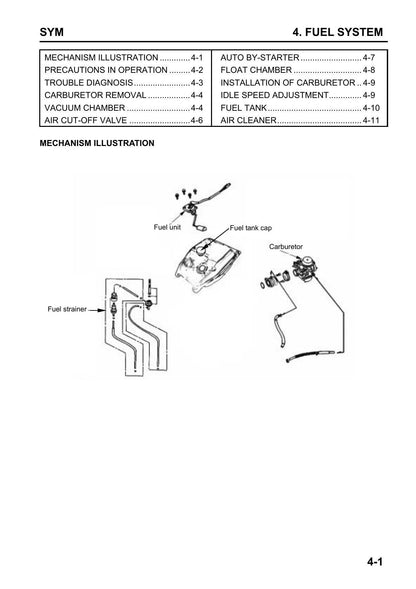

Digital service manual for the 2005-2009 SYM Fiddle II 50cc scooter (model AKA AW05W-6), covering engine overhaul, carburetor fuel system, CVT belt drive, brake system, electrical diagnostics, and full wiring diagrams. Everything a technician or owner needs to maintain and repair this scooter at the highest standard. Delivered instantly as a fully searchable PDF compatible with any PC, Mac, tablet, or mobile device.

Adobe Acrobat (PDF) format
Fully searchable
Easily print any or all content
Everything needed to repair & maintain your scooter
Troubleshooting instructions, wiring diagrams, and reference material

Models Covered

SYM Fiddle II AKA (AW05W-6) 50cc

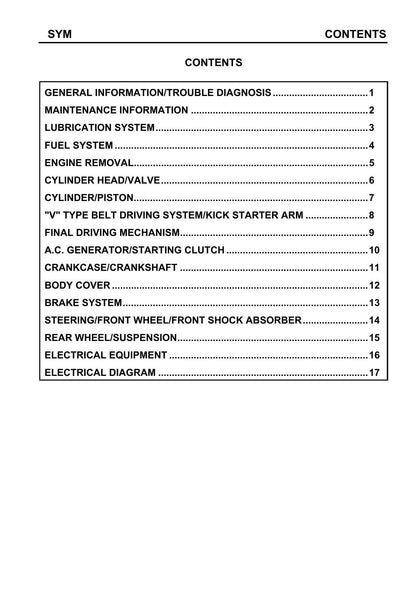

Table of Contents

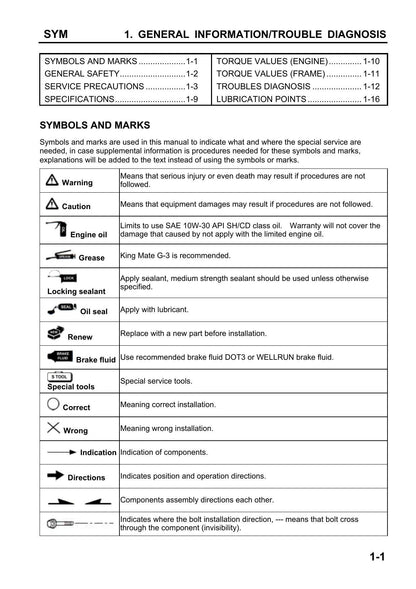

General Information / Trouble Diagnosis

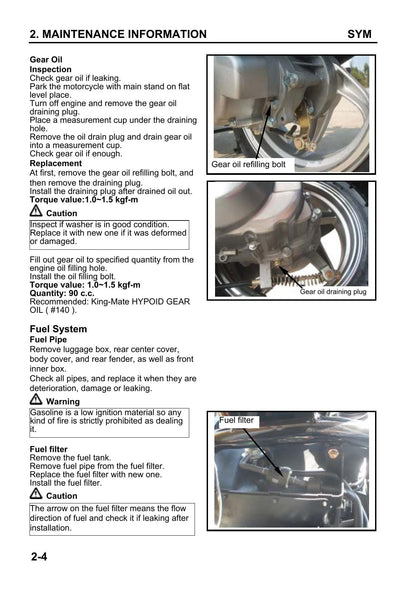

Maintenance Information
Lubrication System
Fuel System
Engine Removal

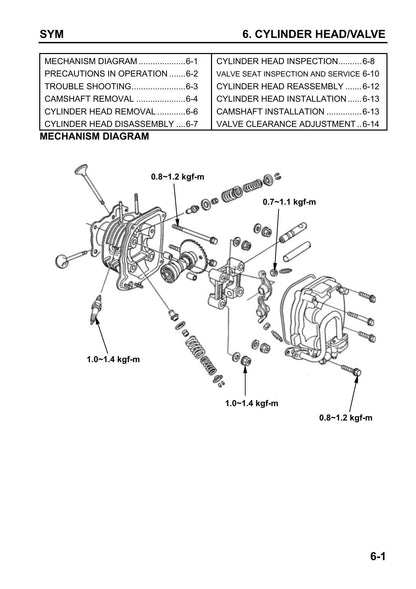

Cylinder Head / Valve

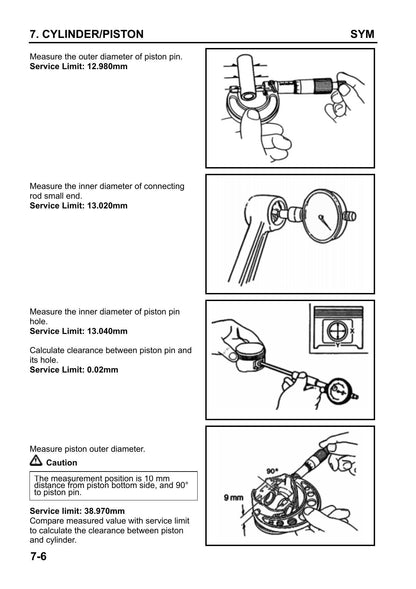

Cylinder / Piston
V-Type Belt Driving System / Kick Starter Arm
Final Driving Mechanism
A.C. Generator / Starting Clutch
Crankcase / Crankshaft
Body Cover
Brake System
Steering / Front Wheel / Front Shock Absorber
Rear Wheel / Suspension
Electrical Equipment
Electrical Diagram

What's Included

Complete engine disassembly and assembly procedures
EFI and fuel system diagnostics
Electrical, ignition, and charging system procedures
Cooling system inspection and maintenance
Clutch, belt, and drivetrain service
Suspension, chassis, and steering procedures
Control linkage adjustments
Troubleshooting charts and diagnostic workflows
Technical specifications and torque tables
High-resolution wiring and system diagrams

Features

Searchable and printable PDF
High-resolution diagrams and schematics
Works on PC, Mac, tablet, and mobile devices
Important: This is a digital PDF manual. No paper book will be provided.
